NANOOM TECH

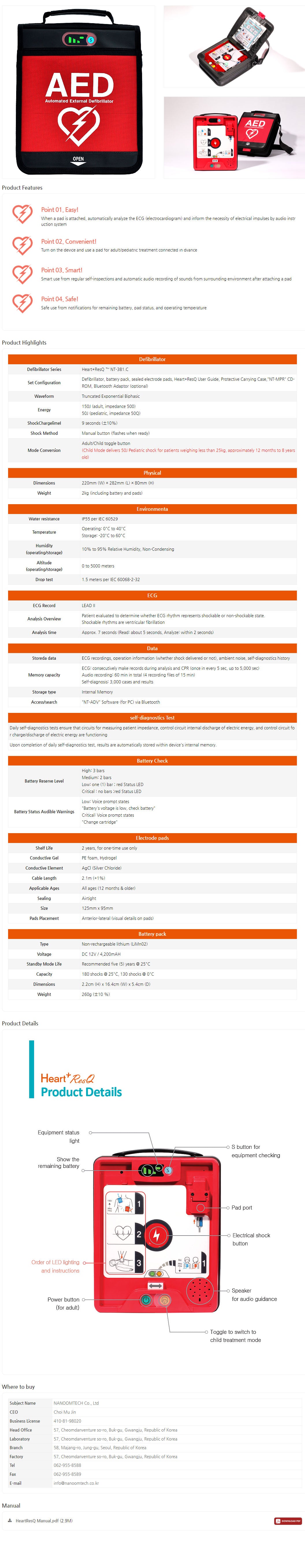

NANOOM TECH Heart+ResQ™ AED
NANOOM TECH Heart+ResQ™ AED
Regular price
RM450.00
Regular price
Sale price
RM450.00
Unit price
/
per
Product features
Point 01, Easy!
When a pad is attached, automatically analyze the ECG (electrocardiogram) and inform the necessity of electrical impulses by audio instruction system
Point 02, Convenient!
Turn on the device and use a pad for adult/pediatric treatment connected in advance
Point 03, Smart!
Smart use from regular self-inspections and automatic audio recording of sounds from the surrounding environment after attaching a pad
Point 04, Safe!
Safe use from notifications for remaining battery, pad status, and operating temperature
Product Highlights
| Defibrillator | |
|---|---|
| Defibrillator Series | Heart+ResQ TMNT-381.C |
| Set Configuration | Defibrillator, battery pack, sealed electrode pads, Heart+ResQ User Guide, Protective Carrying Case, "NT-MPR" CD-ROM, Bluetooth Adaptor (optional) |
| Waveform | Truncated Exponential Biphasic |
| Energy | 150J (adult, impedance 500) 50J (pediatric, impedance 500) |
| ShockChargelimel | 9 seconds (±10%) |
| Shock Method | Manual button (flashes when ready) |
| Mode Conversion | Adult/Child toggle button (Child Mode delivers 50J Pediatric shock for patients weighing less than 25kg, approximately 12 months to 8 yearsold) |
| Physical | |
|---|---|
| Dimensions | 220mm (W) x 282mm (L) x 80mm (H) |
| Weight | 2kg (including battery and pads) |
| Environmenta | |
|---|---|
| Water resistance | IP55 per IEC 60529 |
| Temperature | Operating: 0°C to 40°C Storage: -20°C to 60°C |
| Humidity (operating/storage) |
0 to 5000 meters |
| Altitude (operating/storage) |
10% to 95% Relative Humidity, Non-Condensing |
| Drop test | 1.5 meters per IEC 60068-2-32 |
| ECG | |
|---|---|
| ECG Record | LEAD II |
| Analysis Overview | Patient evaluated to determine whether ECG rhythm represents shockable or non-shockable state. Shockable rhythms are ventricular fibrillation |
| Analysis time | Approx. 7 seconds (Read: about 5 seconds, Analyze: within 2 seconds) |
| Data | |
|---|---|
| Storeda data | ECG recordings, operation information (whether shock delivered or not), ambient noise, self-diagnostics history |
| Memory capacity | ECG: consecutively make records during analysis and CPR (once in every 5 sec, up to 5,000 sec) Audio recording: 60 min in total (4 recording files of 15 min) Self-diagnosis: 3,000 cases and results |
| Storage type | Internal Memory |
| Access/search | "NT-ADV" Software (for PC) via Bluetooth |
| self-diagnostics Test |
|---|
| Daily self-diagnostics tests ensure that circuits for measuring patient impedance, control circuit internal discharge of electric energy, and control circuit for charge/discharge of electric energy are functioning |
| Upon completion of daily self-diagnostics test, results are automatically stored within device's internal memory. |
| Battery Check | |
|---|---|
| Battery Reserve Level | High: 3 bars Medium: 2 bars Low: one (1) bar: red Status LED Critical no bars :red Status LED |
| Battery Status Audible Warnings | Low: Voice prompt states "Battery's voltage is low, check battery" Critical: Voice prompt states "Change cartridge" |
| Electrode pads | |
|---|---|
| Shelf Life | 2 years, for one-time use only |
| Conductive Gel | PE foam, Hydrogel |
| Conductive Element | AgCl (Silver Chloride) |
| Cable Length | 2.1m (+1%) |
| Applicable Ages | All ages (12 months & older) |
| Sealing | Airtight |
| Size | 125mm x 95mm |
| Pads Placement | Anterior-lateral (visual details on pads) |
| Battery pack | |
|---|---|
| Type | Non-rechargeable lithium (LiMn02) |
| Voltage | DC 12V/4,200mAH |
| Standby Mode Life | Recommended five (5) years @ 25°C |
| Capacity | 180 shocks @ 25°C, 130 shocks @ 0°C |
| Dimensions | 2.2cm (H) x 16.4cm (W) x 5.4cm (D) |
| Weight | 260g (±10%) |
